Python and 3PCF Tutorial

This section provides a practical example of how to use 3ptWL-mod from a Python notebook. The example follows a complete workflow:

  1. Generate a linear matter power spectrum using CAMB.

  2. Run wlcf through the Python wrapper.

  3. Plot the resulting 3-point correlation function multipoles.

  4. Compare different theoretical models.

The notebook associated with this tutorial can be used as a starting point for interactive runs and parameter exploration.

Setting up the working directory

First, import the required Python packages and move to the tests directory of the repository:

import os
import numpy as np
import matplotlib.pyplot as plt

import camb
from camb import model
from wlcfpy import wlcf

WLCF_TESTS_DIR = os.environ.get("WLCF_TESTS_DIR", "/path/to/3ptWL-mod/tests")
os.chdir(WLCF_TESTS_DIR)

os.makedirs("input", exist_ok=True)
os.makedirs("Output", exist_ok=True)

Generating the linear power spectrum

The linear matter power spectrum can be generated with CAMB. In this example we use a T17-like cosmology at redshift \(z = 0.5078\):

def make_camb_linear_pk(
    output_file="./input/linear_pk_camb_T17_z05078.txt",
    z_pk=0.5078,
    h=0.7,
    Omb=0.046,
    Omc=0.233,
    Omnu=0.0,
    ns=0.97,
    sigma8=0.82,
    w0=-1.0,
    kmin=1e-4,
    kmax=50.0,
    npoints=1000,
):

    os.makedirs(os.path.dirname(output_file), exist_ok=True)

    H0 = 100.0 * h
    ombh2 = Omb * h**2
    omch2 = Omc * h**2

    pars = camb.CAMBparams()

    # For now we assume massless neutrinos, consistent with Omnu = 0.
    pars.set_cosmology(
        H0=H0,
        ombh2=ombh2,
        omch2=omch2,
    )

    pars.InitPower.set_params(
        ns=ns,
        As=2.1e-9
    )

    pars.set_dark_energy(w=w0)

    # Linear power spectrum at the same redshift used by wlcf/zbin
    pars.set_matter_power(
        redshifts=[z_pk],
        kmax=kmax
    )

    pars.NonLinear = model.NonLinear_none

    # First run to compute sigma8 for the trial As
    results = camb.get_results(pars)
    sigma8_current = results.get_sigma8()[0]

    # Rescale As so that CAMB matches the requested sigma8
    As_rescaled = 2.1e-9 * (sigma8 / sigma8_current) ** 2

    pars.InitPower.set_params(
        ns=ns,
        As=As_rescaled
    )

    results = camb.get_results(pars)

    kh, redshifts, pk = results.get_matter_power_spectrum(
        minkh=kmin,
        maxkh=kmax,
        npoints=npoints,
    )

    pk_z = pk[0]

    np.savetxt(
        output_file,
        np.column_stack([kh, pk_z]),
        fmt="%.10e"
    )

    print(f"Saved linear P(k) at z={z_pk} to:")
    print(output_file)
    print(f"sigma8 target  = {sigma8}")
    print(f"sigma8 CAMB    = {results.get_sigma8()[0]:.6f}")
    print(f"As rescaled    = {As_rescaled:.6e}")

    return output_file, kh, pk_z

The resulting file is passed to wlcf through the parameter fnamePS.

Running 3ptWL-mod from Python

The code can be executed directly from Python using the wlcfpy wrapper:

w = wlcf()
w.set(
    numberThreads=8,
    verbose=2,
    verbose_log=1,

    z=0.5078,
    h=0.7,
    sigma8=0.82,
    Omb=0.046,
    Omc=0.233,
    Omnu=0.0,
    ns=0.97,
    w=-1.0,

    fnamePS="./input/linear_pk_camb_T17_z05078.txt",
    Wg=0,
    fWgchi="./input/Wg_Takahashi_z05078.txt",

    rootDir="Output",
    prefix="halo_model_z05078_",

    tree_level=4,
    zbin=0.5078,
    mMax=5,
    chiQuadSteps=300,
    GLpoints=64,
    Nell=128,
    ellmax=10000,
    ellmin=0.001,
    writevectors=0,
    options=""
)

w.Run()

Here tree_level=4 selects the Takahashi/Halo-model branch.

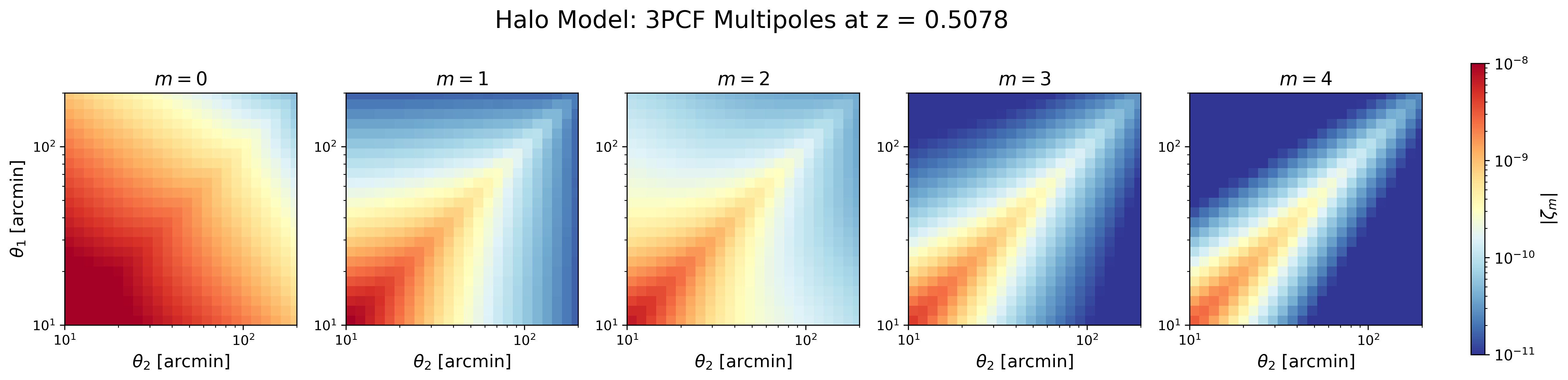

Plotting the 3PCF multipoles

The output files zetam*.txt contain the multipoles \(\zeta_m(\theta_1,\theta_2)\). These can be visualized as 2D maps:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm

path = "Output"
prefix = "halo_model_z05078_"

theta = np.loadtxt(f"{path}/{prefix}theta_array.txt") * 180 / np.pi * 60
Theta2, Theta1 = np.meshgrid(theta, theta)

fig = plt.figure(figsize=(19, 4))

gs = fig.add_gridspec(
    nrows=1,
    ncols=6,
    width_ratios=[1, 1, 1, 1, 1, 0.06],
    wspace=0.25
)

norm = LogNorm(vmin=1e-11, vmax=1e-8)

for m in range(5):
    ax = fig.add_subplot(gs[0, m])

    zeta = np.abs(np.loadtxt(f"{path}/{prefix}zetam{m}.txt"))

    im = ax.pcolormesh(
        Theta2,
        Theta1,
        zeta,
        shading="auto",
        cmap="RdYlBu_r",
        norm=norm
    )

    ax.set_xscale("log")
    ax.set_yscale("log")
    ax.set_xlim(10, 200)
    ax.set_ylim(10, 200)
    ax.set_aspect("equal", adjustable="box")
    ax.set_title(fr"$m={m}$", fontsize=14)

    if m == 0:
        ax.set_ylabel(r"$\theta_1$ [arcmin]", fontsize=13)

    ax.set_xlabel(r"$\theta_2$ [arcmin]", fontsize=13)

# Colorbar outside the plots
cax = fig.add_subplot(gs[0, -1])
cbar = fig.colorbar(im, cax=cax)
cbar.set_label(r"$|\zeta_m|$", fontsize=13)
cbar.ax.tick_params(labelsize=11)

fig.suptitle(
    "Halo Model: 3PCF Multipoles at z = 0.5078",
    fontsize=18,
    y=1.02
)
plt.savefig("halo_model_3pcf.png", dpi=300, bbox_inches="tight")
plt.show()
../_images/halo_model_3pcf.png

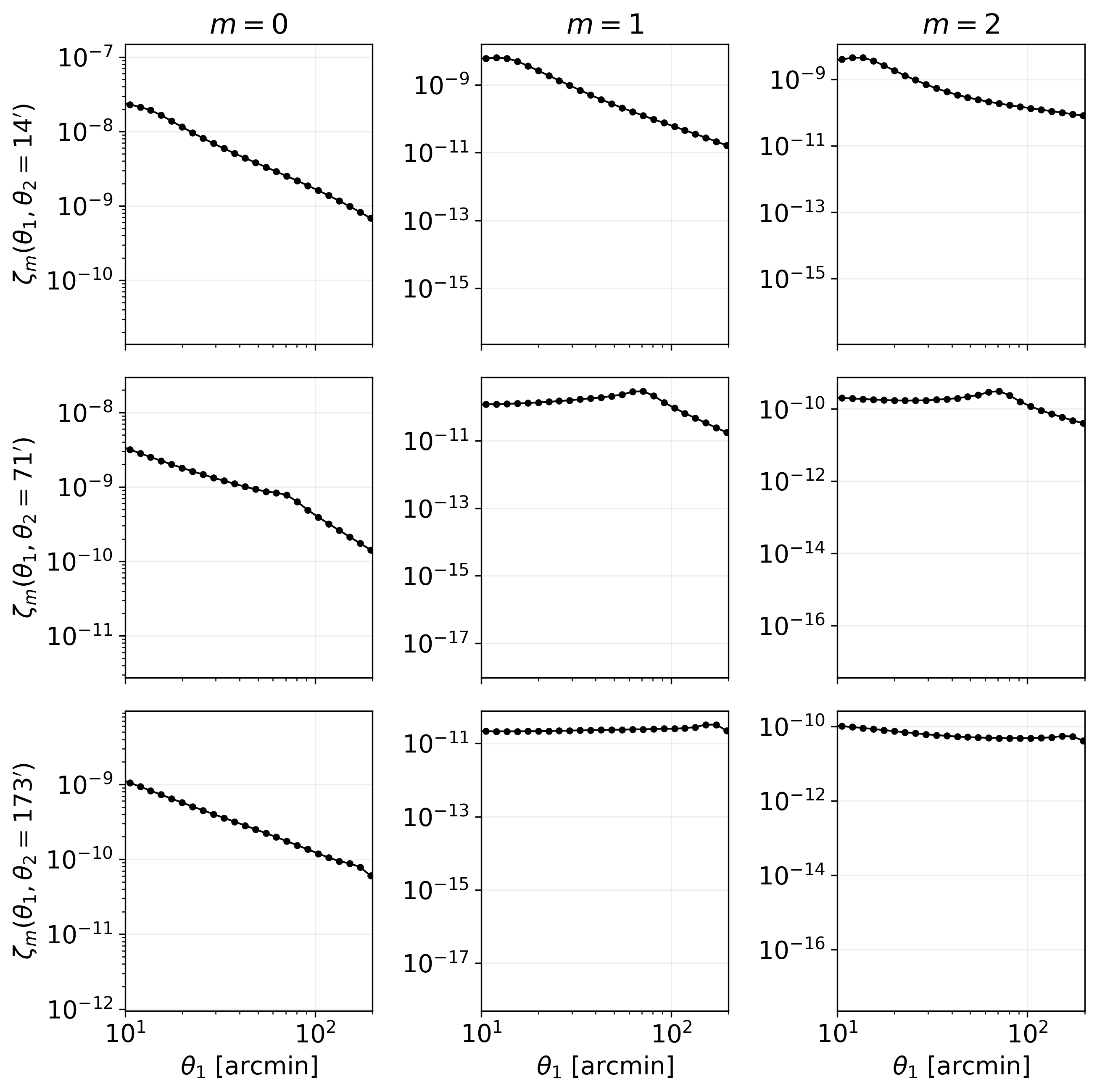

Or we can plot

path = "Output"
prefix = "halo_model_z05078_"

theta = np.loadtxt(f"{path}/{prefix}theta_array.txt") * 180/np.pi * 60

theta2_targets = [13, 72, 169]
m_values = [0, 1, 2]

fig, axes = plt.subplots(
    len(theta2_targets),
    len(m_values),
    figsize=(9, 9),
    sharex=True
)

for i, theta2_fixed in enumerate(theta2_targets):
    idx = np.argmin(np.abs(theta - theta2_fixed))
    theta2_actual = theta[idx]

    for j, m in enumerate(m_values):
        ax = axes[i, j]

        zeta = np.abs(np.loadtxt(f"{path}/{prefix}zetam{m}.txt"))

        # theta2 fixed, theta1 varies
        y = zeta[:, idx]

        ax.plot(theta, y, color="black", marker="o", markersize=3, lw=1)

        ax.set_xscale("log")
        ax.set_yscale("log")

        ax.set_xlim(10, 200)

        if i == 0:
            ax.set_title(fr"$m={m}$")

        if j == 0:
            ax.set_ylabel(
                fr"$\zeta_m(\theta_1,\theta_2={theta2_actual:.0f}')$"
            )

        if i == len(theta2_targets) - 1:
            ax.set_xlabel(r"$\theta_1$ [arcmin]")

        ax.grid(alpha=0.2)

plt.tight_layout()
plt.savefig("halo_model_slice_3pcf.png", dpi=300, bbox_inches="tight")
plt.show()
../_images/halo_model_slice_3pcf.png

Comparing different models

We can run several theoretical models by changing tree_level:

base_params = dict(
    numberThreads=8,
    verbose=2,
    verbose_log=1,

    # T17 / paper cosmology
    z=0.5078,
    h=0.7,
    sigma8=0.82,
    Omb=0.046,
    Omc=0.233,
    Omnu=0.0,
    ns=0.97,
    w=-1.0,

    # Make sure this P(k) was generated with the same cosmology
    fnamePS="./input/linear_pk_camb_T17_z05078.txt",

    # Redshift bin
    Wg=0,
    fWgchi="./input/Wg_Takahashi_z05078.txt",

    rootDir="Output",

    zbin=0.5078,
    mMax=5,
    chiQuadSteps=300,
    GLpoints=64,
    Nell=128,
    ellmax=10000,
    ellmin=0.001,
    writevectors=0,
    options=""
)

models = {
    1: "SPT",
    2: "Tree",
    3: "EFT",
    4: "Halo_model"
}

for tree_level, model_name in models.items():

    print(f"Running {model_name} model with tree_level={tree_level}")

    params = base_params.copy()
    params["tree_level"] = tree_level
    params["prefix"] = f"{model_name.lower()}_z05078_"

    w = wlcf()
    w.set(params)
    w.Run()

    print(f"Finished {model_name}")

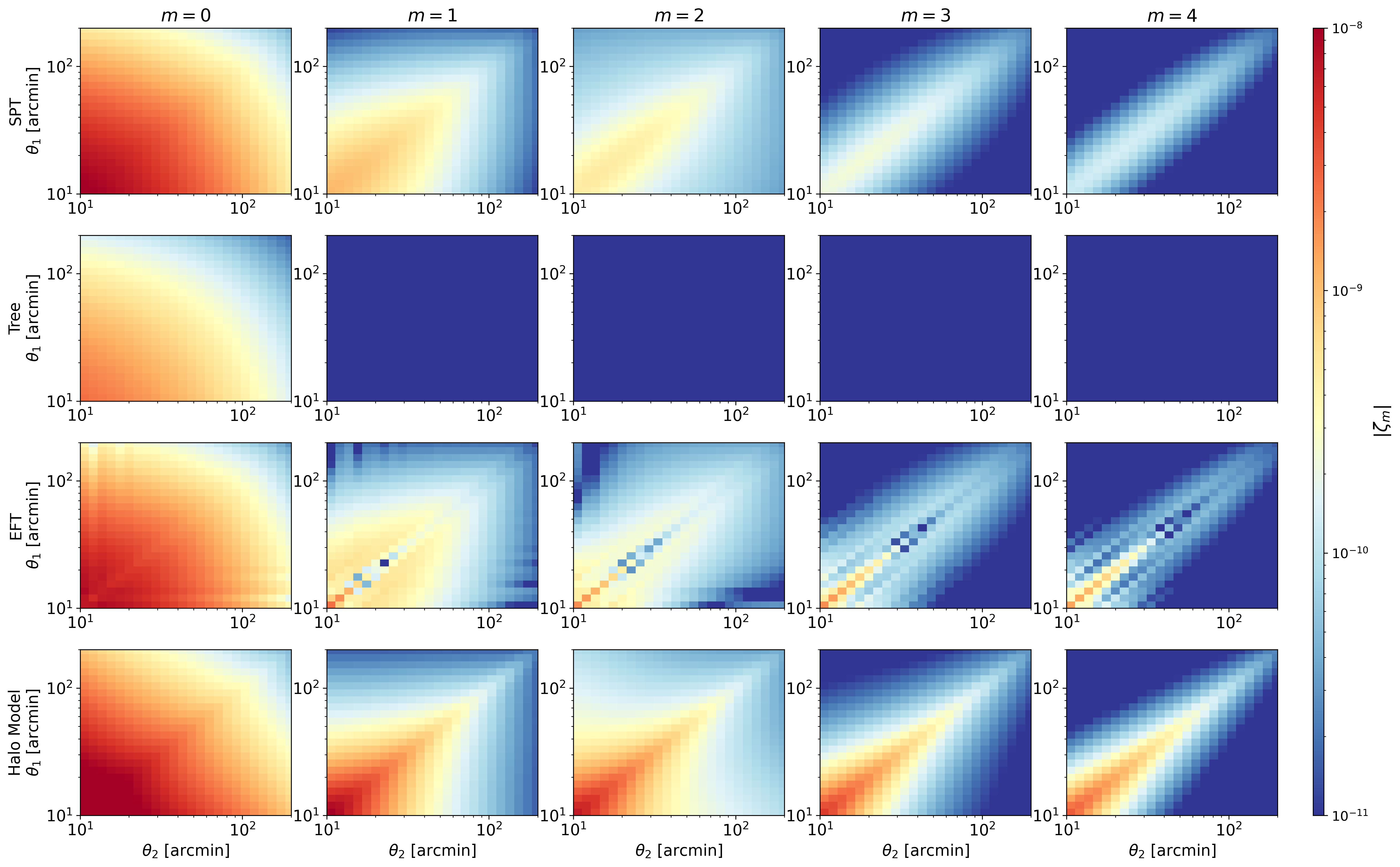

We plot the different cases

plt.rcParams.update({
    "font.size": 14,
    "axes.titlesize": 16,
    "axes.labelsize": 14
})

path = "Output"

models = {
    "SPT": "spt_z05078_",
    "Tree": "tree_z05078_",
    "EFT": "eft_z05078_",
    "Halo Model": "halo_model_z05078_",
}

m_values = range(5)

theta = np.loadtxt(f"{path}/{models['SPT']}theta_array.txt") * 180 / np.pi * 60
Theta2, Theta1 = np.meshgrid(theta, theta)

nrows = len(models)
ncols = len(m_values)

fig = plt.figure(figsize=(20, 13))

gs = fig.add_gridspec(
    nrows=nrows,
    ncols=ncols + 1,
    width_ratios=[1, 1, 1, 1, 1, 0.05],
    wspace=0.2,
    hspace=0.25
)

norm = LogNorm(vmin=1e-11, vmax=1e-8)

for i, (model_name, prefix) in enumerate(models.items()):
    for j, m in enumerate(m_values):

        ax = fig.add_subplot(gs[i, j])

        zeta = np.abs(np.loadtxt(f"{path}/{prefix}zetam{m}.txt"))

        im = ax.pcolormesh(
            Theta2,
            Theta1,
            zeta,
            shading="auto",
            cmap="RdYlBu_r",
            norm=norm
        )

        ax.set_xscale("log")
        ax.set_yscale("log")
        ax.set_xlim(10, 200)
        ax.set_ylim(10, 200)

        if i == 0:
            ax.set_title(fr"$m={m}$")

        if j == 0:
            ax.set_ylabel(f"{model_name}\n" + r"$\theta_1$ [arcmin]")

        if i == nrows - 1:
            ax.set_xlabel(r"$\theta_2$ [arcmin]")

cax = fig.add_subplot(gs[:, -1])
cbar = fig.colorbar(im, cax=cax)
cbar.set_label(r"$|\zeta_m|$", fontsize=16)
cbar.ax.tick_params(labelsize=12)
plt.savefig("models_3pcf.png", dpi=300, bbox_inches="tight")
plt.show()
../_images/models_3pcf.png

Emulator and MCMC notebooks

The repository also includes a compact emulator workflow under tests/. The emulator is trained from 3ptWL-mod outputs, so users can regenerate the full data set instead of relying on precomputed development files.

Run the notebooks in this order:

  1. tests/emulator.ipynb

    • builds a 300-point Latin-hypercube grid in Omega_m, h, and logAs;

    • generates CAMB linear power spectra;

    • runs 3ptWL-mod for the zs9 redshift configuration;

    • trains one neural-network emulator per multipole and saves the weights under tests/emulator_outputs/.

  2. tests/use_wlcf_emulator.ipynb

    • loads the weights generated by the first notebook;

    • shows how to evaluate the emulator;

    • selects a random test-set cosmology;

    • builds a simple artificial covariance;

    • runs a short emcee fit and saves a triangular plot under tests/emulator_usage_demo/.

  3. tests/firecrown_emulator_likelihood.ipynb

    • loads the same emulator weights;

    • builds a masked 3ptWL-mod data vector with the new binning mask;

    • constructs a Gaussian likelihood with an artificial covariance;

    • runs a compact emcee check;

    • includes an optional Firecrown Statistic and ConstGaussian scaffold that can be activated after installing Firecrown.

The implementation shared by these notebooks lives in tests/emulator.py. Edit EmulatorConfig in that file, or override it inside the notebook, to change the parameter ranges, number of evaluations, network architecture, number of MCMC walkers, or number of MCMC steps.

The Firecrown bridge is optional. If it is needed, install Firecrown and SACC from conda-forge in the notebook environment:

conda create -n 3ptwl-mod-firecrown -c conda-forge \
  python=3.11 camb scipy scikit-learn matplotlib emcee corner \
  firecrown sacc jupyterlab ipykernel
conda activate 3ptwl-mod-firecrown
python -m ipykernel install --user --name 3ptwl-mod-firecrown \
  --display-name "Python (3ptWL-mod Firecrown)"
